ALGOTEX Cutting Plotter - Made in Italy
ALGOTEX Cutting Plotter - Made in Italy

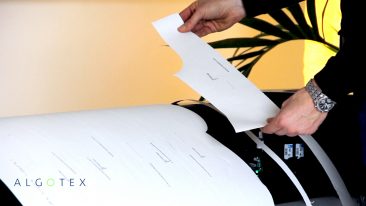

Model PROJETCUT 160 / 180 - 1 Machine 2 Functions: Print & Cut
The latest in the ALGOTEX family, PROJETCUT is the only multifunctional plotter capable of printing as a normal plotter and cutting Paper pattern card board of up to 250 g/m2.
The combination of these two technologies plus exceptional precision make it the most versatile and reliable product on the market.
Its compact design and curved lines highlight the futuristic character and unique style that characterize ALGOTEX products. PROJETCUT offers ergonomics, multi-functionality and efficiency in a single cutter plotter.
- Print technology: ink jet
- Cutter technology: tangential blade
- Paper movement: high-precision pinch roller system, configurable by media type
- Cutting method: by window, with dimensions chosen by the operator
- Type of cut: dimensions of the section to be cut are selected by the operator
- Interface: compatible with all CAD systems
*** Optional: file nesting
|
|
ProJetCut 160 |
ProJetCut 180 |
|
Printing width |
165 cm |
185 cm |
|
Maximum printing speed |
60 m2 / h |
70 m2 / h |
|
Maximum cutting speed |
1000 mm/s Length-wise; 1414 mm/s Across |
|
|
Dimensions |
220 x 110 x 40 cm |
245 x 110 x 40 cm |
|
Weight |
90 kg |
105 Kg |
|
Printing resolution |
300 dpi |
|
|
Power |
115 – 230 VAC, 150 W |
|
|
Marker paper grammage |
from 30 to 80 g/m2 |
|
|
Card board grammage |
from 90 to 250 g/m2 |
|
|
Max paper roll weight / diameter |
40 kg / 30 cm |
|
|
Supported file formats |
HPGL / HPGL2 |
|
